    ISO9001 Pneumatic Air Valve 5/2 Way 4A210-08 Airtac Type Air Pilot Operated Valve

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 4A210-08
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    ISO9001 Pneumatic Air Valve 5/2 Way 4A210-08 Airtac Type Air Pilot Operated Valve

    4A210-08 Airtac Type 5/2 Way Single Air Pilot Valve Pneumatic


    Pneumatic air pilot valves control compressed air within pneumatic systems; they are used to signal valves, cylinders or other pneumatic devices. Pneumatic air pilot valves are either single or dual air pilot control with or without priority; the priority function ensures a default position should two pilot control signals arrive at the same time. Pneumatic air pilot valves are available as a 3 or 5 way valve configuration with 1/8'', 1/4'', 3/8'' or 1/2'' threaded ports.


    Data of 4A200 Series Pneumatic Control Valves:

    Model
    4A210-06
    4A220-06
    4A230C-06
    4A230E-06
    4A230P-06
    4A210-08
    4A220-08
    4A230C-08
    4A230E-08
    4A230P-08
    Fluid
    Air (to be filtered by 40 μ m filter element)
    Acting
    Exterior Control
    Port Size
    In=Out=Exhaust=1/8''
    In=Out=1/4'', Exhaust=1/8''
    Orifice Size
    25.00 mm2(Cv=0.78)
    18.00 mm2(Cv=0.67)
    30.00 mm2(Cv=0.89)
    18.00 mm2(Cv=0.67)
    Valve Type
    5 way 2 position
    5 way 3 position
    5 way 2 position
    5 way 3 position
    Working Pressure
    0.15~0.8MPa (21~114psi)
    Max. Pressure Resistance
    1.5MPa (215psi)
    Temperature
    5~50 ℃
    Material of Body
    Aluminum Alloy
    Max. frequency
    5 cycle/sec

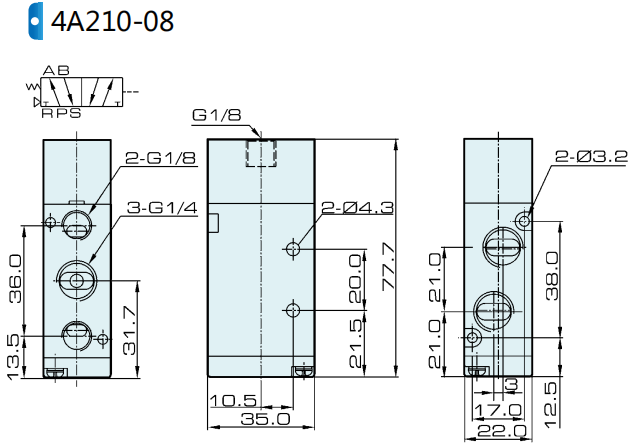

    Dimension of 4A210-08 Pneumatic Air Pilot Valve:

    4A210-08 Airtac Type 5/2 Way Single Air Pilot Valve Pneumatic 0
