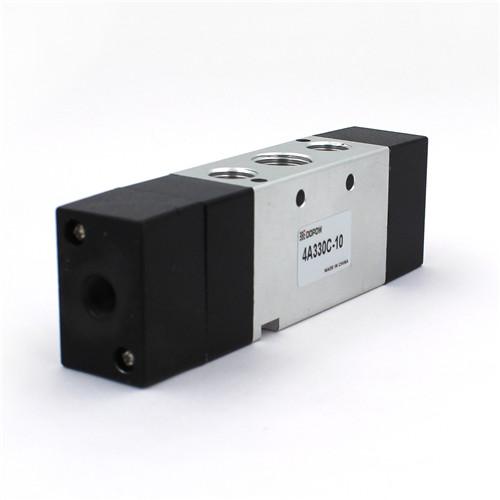

    Airtac Type 5/3 Way Pneumatic Pilot Valve 4A330C-10 4A330E-10 4A330P-10

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 4A330C-10
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    Airtac Type 5/3 Way Pneumatic Pilot Valve 4A330C-10 4A330E-10 4A330P-10

    4A330C-10 4A330E-10 4A330P-10 Airtac Type 5/3 Way Pneumatic Pilot Valve


    Air pilot operated pneumatic valves control compressed air within pneumatic systems; they are used to signal valves, cylinders or other pneumatic devices. Pneumatic air pilot valves are either single or dual air pilot control with or without priority; the priority function ensures a default position should two pilot control signals arrive at the same time. Pilot operated pneumatic valves are available as a 3 or 5 way valve configuration with 1/8'', 1/4'', 3/8'' or 1/2'' threaded ports.


    Technical Data of 4A300 Series Pneumatic Air Pilot Valve:

    Model
    4A310-08
    4A320-08
    4A330C-08
    4A330E-08
    4A330P-08
    4A310-10
    4A320-10
    4A330C-10
    4A330E-10
    4A330P-10
    Fluid
    Air (to be filtered by 40 μm filter element)
    Acting
    exterior control
    Port Size
    in=out=exhaust=1/4''
    in=out=3/8'', exhaust=1/4''
    Orifice Size
    4A310-10, 4A320-10: 28.0mm² (Cv=1.65)
    4A330C-10: 21.3mm² (Cv=1.25)
    Vlave Type
    5 way 2 position
    5 way 3 postion
    5 way 2 position
    5 way 3 position
    Operating Pressure
    0.15 to 0.8 MPa (21 to 114 psi)
    Proof Pressure
    1.2MPa (175psi)
    Temperature
    -20 to +70℃
    Body Material
    Aluminum Alloy
    Max Frequency
    5 cycle/sec
    3 cycle/sec
    5 cycle/sec
    3 cycle/sec


    Dimension of 4A330C-10 Pneumatic Air Pilot Valve:

    4A330C-10 4A330E-10 4A330P-10 Airtac Type 5/3 Way Pneumatic Pilot Valve 0
