    4A210-06 Compact Pneumatic Air Valve Direct Acting Air Pilot Valve 3 Way

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 4A210-06
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    4A210-06 Compact Pneumatic Air Valve Direct Acting Air Pilot Valve 3 Way

    4A210-06 Airtac Type 5/2 Way Single Air Pilot Valve Pneumatic


    Air Pilot Valve Features:


    1. Good tightness and sensitive reaction;
    2. Three position with three kinds of central function for your choice;
    3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
    4. Integrate with the manifold to save installation space.
    5. Single valve or multiple manifold mounted valve applications
    6. Finally a compact design with maximum flow.


    Technical Data of 4A200 Series Pneumatic Air Pilot Valve:

    Model
    4A210-06
    4A220-06
    4A230C-06
    4A230E-06
    4A230P-06
    4A210-08
    4A220-08
    4A230C-08
    4A230E-08
    4A230P-08
    Fluid
    Air (to be filtered by 40 μm filter element)
    Acting
    exterior control
    Port Size
    in=out=exhaust=1/8''
    in=out=1/4'', exhaust=1/8''
    Orifice Size
    4V210-08, 4A220-08: 17.0mm² (Cv=1.0)
    4A230C-08: 13.6mm² (Cv=0.8)
    Vlave Type
    5 way 2 position
    5 way 3 postion
    5 way 2 position
    5 way 3 position
    Operating Pressure
    0.15 to 0.8 MPa (21 to 114 psi)
    Proof Pressure
    1.2MPa (175psi)
    Temperature
    -20 to +70℃
    Body Material
    Aluminum Alloy
    Max Frequency
    5 cycle/sec
    3 cycle/sec
    5 cycle/sec
    3 cycle/sec

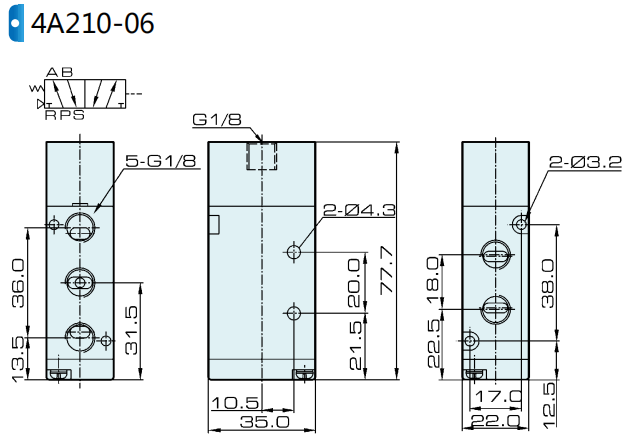

    Dimension of 4A210-06 Pneumatic Air Pilot Valve:

    4A210-06 Airtac Type 5/2 Way Single Air Pilot Valve Pneumatic 0
