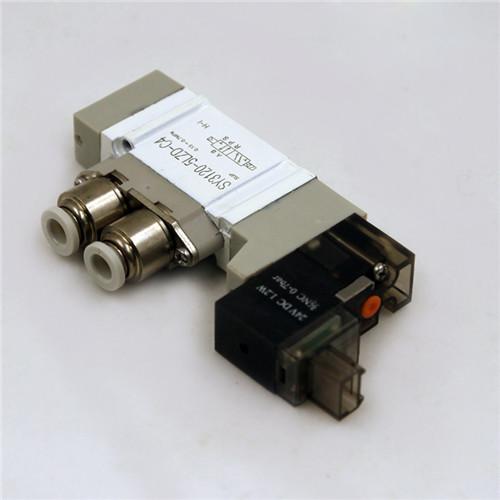

    Mini Pneumatic Cylinder Valve Automation SMC Compact Solenoid Valve

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : SY Series
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000Pcs/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    Mini Pneumatic Cylinder Valve Automation SMC Compact Solenoid Valve

    Pneumatic Cylinder Valve Mini Valve Automation SMC Replace AC220V DC24V


    Pneumatic Compact Solenoid Valve Mini Valve Automation SMC Replace AC220V DC24V


    Response Time


    SeriesType of actuatorResponse time ( at the pressure of 0.5MPa )

    Without light / surge

    Voltage suppressor

    With light / surge voltage suppressor
    Type Z
    SY30002 position single12ms or less15ms or less
    2 position double10ms or less13ms or less
    3 position15ms or less20ms or less


    Specifications


    SeriesSY3000
    FluidAir
    Internal Pilot Operating Pressure Range2 Position Single0 . 15 ~ 0 . 7 MPa
    2 Position Double0 . 1 ~ 0 . 7 MPa
    3 Position0 . 2 ~ 0 . 7 MPa
    Ambient and fluid Temperature- 10 ~ 50 ℃ ( No freezing )
    Max . operating frequency2 Position Single , Double10 Hz
    3 Position3 Hz
    Manual override ( Manual operation )Non – locking push type
    Pilot exhaust methodCommon exhaust type for main and pilot valve
    LubricationNot required
    Mounting orientationUnrestricted


    Solenoid Specifications


    Electrical entryL plug connector ( L )
    Coil rated voltage ( V )DC24 , 12
    AC 50 / 60 Hz110 , 220
    Allowable voltage fluctuation ( % )± 10 % of rated voltage
    Power ConsumptionDCStandard0 . 35W ( With indicator light : 0 . 4 )
    Apparent PowerAC110V1 . 6V A
    220V2 . 5VA
    Indicator lightLED


    Features


    Improved product performance and reliability with the redesigned SY series valve .

    The SY3000 and SY5000 have the same valve width as their predecessors , but the flow has been increased by up to 80 % , allowing the valve size to be reduced . A built - in strainer in the pilot valve prevents trouble caused by foreign matter . By using H - NBR seal material for the main valve and seals , Ozone resistance has been improved . Side , top and bottom port / pipe directions are available to allow flexible installation . The SY is available in body ported or base mounted styles , and can be used individually or manifold mounted.
