    1/8'' 5 Port Pneumatic Solenoid Valve 4V110-06 Solenoid Air Control Valve

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 4V110-06
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

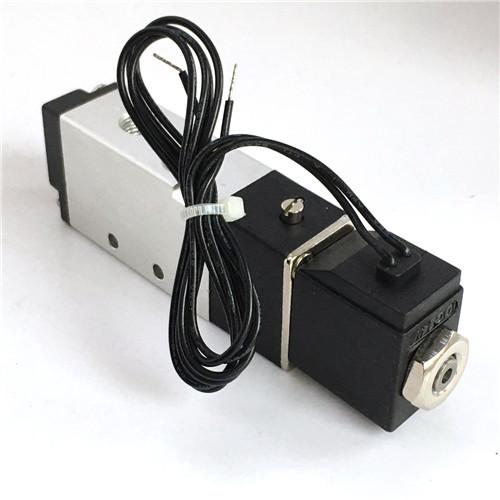

    1/8'' 5 Port Pneumatic Solenoid Valve 4V110-06 Solenoid Air Control Valve

    4V110-06 1/8'' 2 Position 5 Port Pneumatic Air Control Solenoid Valve


    Pneumatic valve is where air or an inert gas is the pneumatic drive force. These type of pneumatic valves control or manage the source air within an automated system. While frequently referred to as pneumatic valves, they can be actuated (operated) by manually, by pneumatic actuation (Air Pilot Valve), by solenoid actuation (Pneumatic Solenoid Valve), or by motorized actuation. Ultimately, they all serve the same purpose: they modulate or control the source air for an automated system.


    Data of 4V100 Series Pneumatic Solenoid Valves:


    Model
    4V110-06
    4V120-06
    4V130C-06
    4V130E-06
    4V130P-06
    4V110-08
    4V120-08
    4V130C-08
    4V130E-08
    4V130P-08
    Fluid
    Air(to be filtered by 40 μ m filter element)
    Acting
    Internal pilot or external pilot
    Port Size
    In=Out=1/8''
    In=Out=1/4''
    Orifice Size
    5.5 mm2
    (Cv=0.31)
    5.0 mm2
    (Cv=0.28)
    12.00 mm2
    (Cv=0.67)
    9.00 mm2(Cv=0.50)
    Valve Type
    5 port 2 position
    5 port 3 position
    5 port 2 position
    5 port 3 position
    Operating Pressure
    0.15~0.8MPa (21~114psi)
    Proof Pressure
    1.5MPa (215psi)
    Temperature ℃
    -20~70
    Material of Body
    Aluminum alloy
    Max. frequency
    5 cycle/sec
    3 cycle/sec
    5 cycle/sec
    3 cycle/sec

    Dimension of 4V110-06 Pneumatic Solenoid Valve:

    4V110-06 Airtac Type Pneumatic Solenoid Valve 4V110-06-DC24V 24VDC 0
