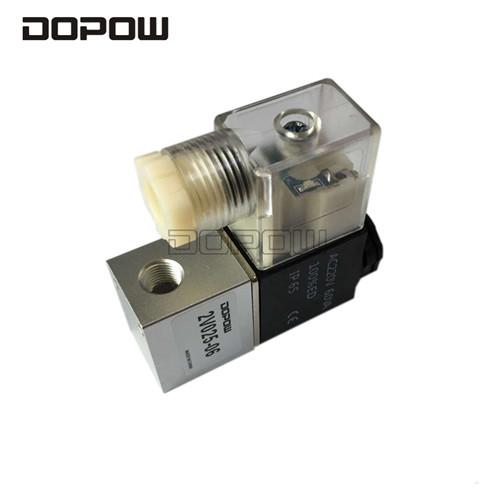

    2V Series DC 12 Volt Pneumatic Solenoid Valve 2 Way 2 Position Direct Drive

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 2V025-06
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    2V Series DC 12 Volt Pneumatic Solenoid Valve 2 Way 2 Position Direct Drive

    2V Series DC 12 Volt Pneumatic Solenoid Valve 2 Way 2 Position Direct Drive


    Features:
    1.Structure in sliding column mode: good tightness and sensitive reaction.
    2.Three position solenoid vales have three kinds of central function for your choice.
    3.Double control solenoid valves have memory function.
    5.Internal hole adopts special processing technology which has little attrition,low start pressure and long service life. 6.No need to add oil for lubrication.
    7.It is available to form integrated valve group with the base to save installation space.
    8.Several standard voltage grades are optional.

    Inner structure and material of major parts:


    NOItem
    1Connector
    2Connector gasket
    3Nut
    4Coil
    5Armature assembly
    6Body cober
    7/
    8Body

    Specifications

    Model2V025-062V025-08
    FluidAir. Water. Oil
    ActingDirect acting
    Initial state2.52.5
    Orifice size0.230.25
    Port size1/8''1/4''
    Viscosity limitUnder 20CST
    Pressure range0·1.0MPa(0~145psi)
    Proof pressure1.5MPa(215psi)
    Material of bodyAluminum Alloy
    Seal materialNBR
    Max. frequency0.05 sec and below

    Coil Specification

    Valve typePower typeFrequency(Hz)Voltage rangeElectrical entry

    Power Consumption

    (VA/W)

    Insulation

    Temp.rise

    (℃)

    2V025


    AC50± 15%

    Terminal

    Grommet

    7.0VAClass B35
    60
    DC-± 10%7.0W45
