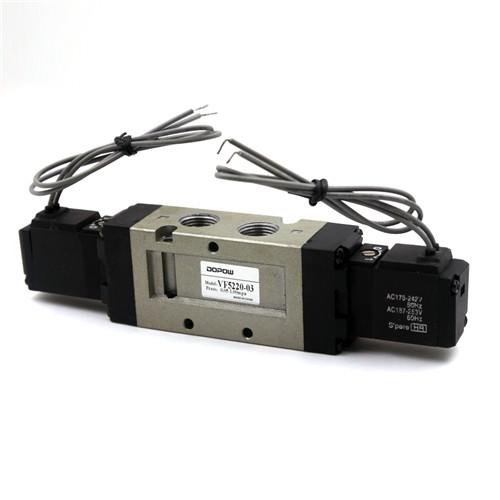

    Safety Solenoid Valve VF5220-03 Pneumatic Electric Solenoid Valve For Non Corrosive Gases

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : VF5220-03
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    Safety Solenoid Valve VF5220-03 Pneumatic Electric Solenoid Valve For Non Corrosive Gases

    Safety valve solenoid VF5220-03 For Non-corrosive Gases solenoid electric valve
    Solenoid valve

    It is an industrial equipment controlled by electromagnetism and an automatic basic element used to control fluid. It belongs to actuator and is not limited to hydraulic and pneumatic. It is used to adjust the direction, flow, speed and other parameters of the medium in the industrial control system. The solenoid valve can cooperate with different circuits to achieve the desired control, and the control accuracy and flexibility can be guaranteed. There are many kinds of solenoid valves, different solenoid valves play a role in different positions of the control system, the most commonly used are check valve, safety valve, direction control valve, speed control valve, etc.


    Description


    Solenoid valves are electromagnetically controlled industrial equipment. They are the basic components for controlling fluids. They are actuators and are not limited to hydraulic and pneumatic. Used in industrial control systems to adjust the direction, flow, speed and other parameters of the media. The solenoid valve can be used with different circuits to achieve the desired control, while the precision and flexibility of the control can be guaranteed.

    VF5220
    Model
    VF3130
    VF33(4/5)30
    VF5120
    VF53(4/5)50
    VZ5120
    VZ53(4/5)50
    VF3120
    VF5220
    VZ5220
    Valve Type
    5/2 way
    5/3 way
    5/2 way
    5/3 way
    5/2 way
    5/3 way
    Orifice Size
    16mm²
    (Cv=0.89)
    12mm²
    (Cv=0.67)
    25mm²
    (Cv=1.4)
    18mm²
    (Cv=1)
    12mm²
    (Cv=0.67)
    9mm² (Cv=0.50)
    Fluid
    Air (to be filtered by 40 μm filter element)
    Operating Pressure
    0.15 to 0.8 MPa
    Proof Pressure
    1.2 MPa
    Body
    Material
    Aluminum Alloy
    Max Frequency
    5 cycle / sec
    Voltage
    12VDC, 24VDC, 24VAC, 110VAC, 220VAC
    Wire Form
    Lead Wire or DIN43650 Connector
