    4V410-15 1/2'' Single Coil Solenoid Valve , 5 2 Way Directional Control Valve

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 4V410-15
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    4V410-15 1/2'' Single Coil Solenoid Valve , 5 2 Way Directional Control Valve

    4V410-15 1/2'' Single Coil 5/2 Way Directional Pneumatic Valve


    Pneumatic valve can also be called gas solenoid valve, solenoid valve or only air valve. Pneumatic solenoid valves are widely used in many different industries and applications can include compressed aerodynamic tools such as jackhammers and nail guns, vacuum cleaners, ventilation systems, laser printers and medical and dental pneumatic equipment.

    Many industries rely on proportional solenoid valves to accurately regulate the flow of fluids, gases, and air in and out of components for a variety of applications. These valves may be made of plastic or metal (e.g. stainless steel). Pneumatic air valves facilitate multi-line valves because air can be easily compressed and directed to different outlets, while solenoid guides allow applications such as space heating to be easily automated, activated or remotely triggered.


    Technical Data:

    Model
    4v410-15
    4V420-15
    4V430C-15
    4V430E-15
    4V430P-15
    Fluid
    Air(to be filtered by 40 μ m filter element)
    Acting
    Internal pilot or external pilot
    Port Size
    In=Out=Exhaust=1/2''
    Orifice Size
    50.00 mm² (Cv=2.79)
    30.00 mm² (Cv=1.68)
    Valve Type
    5 port 2 position
    5 port 3 position
    Operating Pressure
    0.15~0.8MPa (21~114psi)
    Proof
    1.5MPa (215psi)
    Temperature ℃
    -20 to 70
    Material of Body
    Aluminum alloy
    Max. frequency
    3cycle/sec

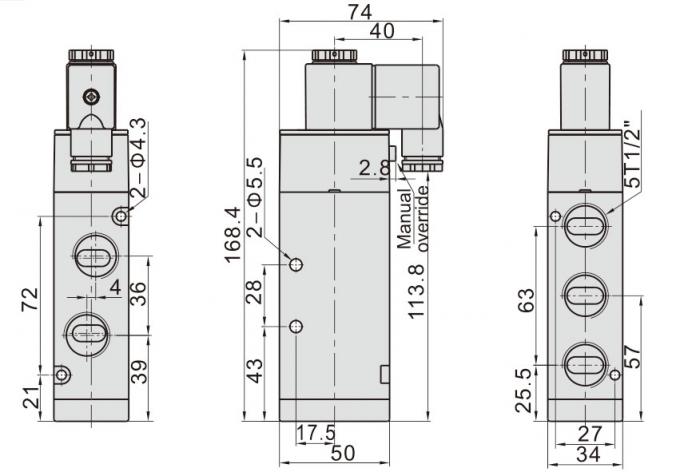

    Dimension Diagram:

    4V410-15 1/2'' Single Coil 5/2 Way Directional Pneumatic Valve 0

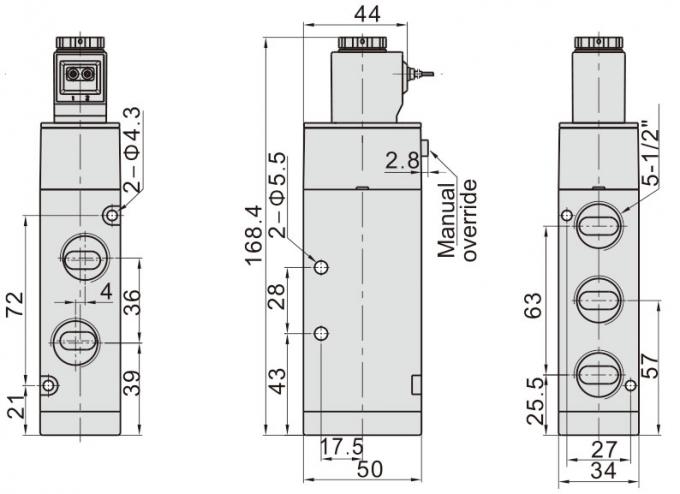

    4V410(Grommet)

    4V410-15 1/2'' Single Coil 5/2 Way Directional Pneumatic Valve 1


    Brando Supply:
    1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4V220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10.


    2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15.


    3. 3/2 Way Pneumatic Solenoid Valve: 3V110-06, 3V120-06, 3V210-06, 3V220-06, 3V210-08, 3V220-08, 3V310-08, 3V320-08, 3V310-10, 3V320-10, 3V410-15, 3V420-15.


    4. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08.
