    3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position Direct Acting

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 3F210-08
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position Direct Acting

    3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position


    Product Feature:

    1. Direct acting and normally closed type.
    2. The 3F series has aluminum foot pedal and 3FM series has plastic foot pedal, in direct acting type, horizontal and compact structure.
    3. If the duration of direction-change is long. the valves with lock may be selected.
    4. The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact.


    Technical Data of 3F, 3FM series Foot Pedal Valve:

    Model3F210-M53F210-063FM210-063F210-083FM210-08
    FluidAir (to be filtered by 40μm filter element)
    OperatingActing type controlled by foot normally closed
    Port SizeM51/8''1/8''1/4''1/4''
    Valve Type3/2 way
    Pressure Range0 to 1.0 MPa (0 to 145 psi)
    Proof Pressure1.5 MPa (215 psi)
    Temperature-20 to +70℃
    Body Material3FM: Plastic, 3F: Aluminum Alloy


    Ordering Code of 3F, 3FM series Foot Pedal Valve:

    3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position 0

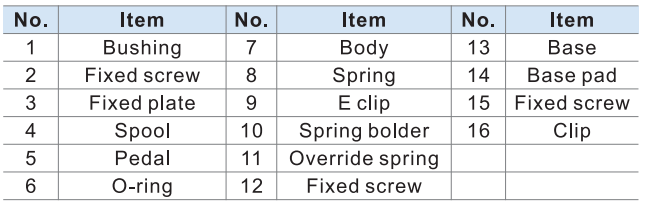

    Inner Structure of 3F, 3FM series Foot Pedal Valve:

    3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position 1

    3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position 2


    Dimension of 3F, 3FM series Foot Pedal Valve:

    3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position 3


    Related Products
    Model
    3FM210-M5
    3F210-06
    3FM210-06
    3F210-08
    3FM210-08
    Fluid
    Air (to be filtered by 40μm filter element)
    Operating
    Acting type controlled by foot, normally closed
    Port Size
    M5
    1/8''
    1/8''
    1/4''
    1/4''
    Valve Type
    3/2 Way
    Pressure Range
    0 to 1.0 MPa (0 to 145 psi)
    Proof Pressure
    1.5 MPa (215 psi)
    Temperature
    -20 to +70℃
    Body Material
    3FM: Plastic, 3F: Aluminum Alloy
