    4V330C-10 5 Way 3 Position Solenoid Valve Directional Control 5 3 Way Pneumatic Valve

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 4V330C-10
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    4V330C-10 5 Way 3 Position Solenoid Valve Directional Control 5 3 Way Pneumatic Valve

    4V330C-10 5/3 Way 5 Way 3 Position Pneumatic Directional Control Air Solenoid Valve
    Product Description

    Pneumatic solenoid valves are used to direct or stop the flow of compressed air to their appliances. They can be used for example to actuate a cylinder, a larger industrial valve or air tools.

    Pneumatic solenoid valves are generally classified by 2 numbers, the first digit indicates the number of ports, the second digit the number of states. The most common types are 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (1 or 2 solenoids). By changing the solenoid coil, different operating voltages can be achieved.

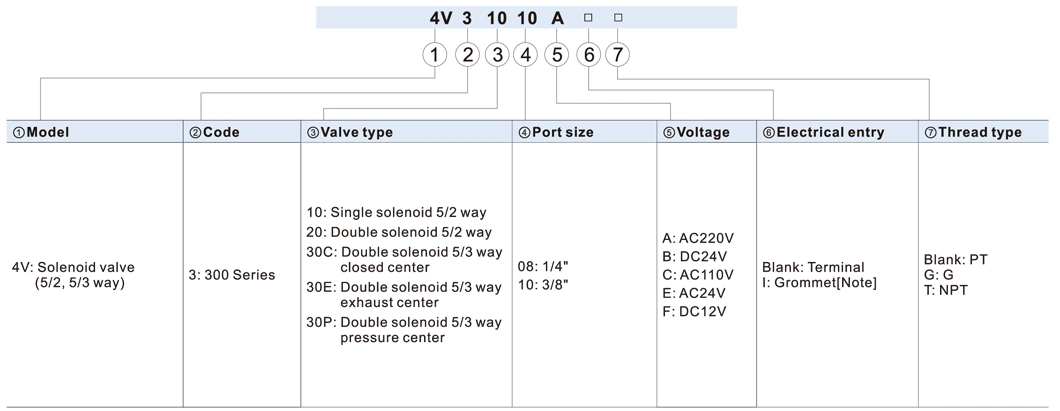

    How To Order

    4V330C-10 4V330E-10 4V330P-10 5/3 Way 5 Way 3 Position Pneumatic Directional Control Air Solenoid Valve 12VDC 24VDC 24VAC 110VAC 220VAC

    Main Dimension

    4V330C-10 4V330E-10 4V330P-10 5/3 Way 5 Way 3 Position Pneumatic Directional Control Air Solenoid Valve 12VDC 24VDC 24VAC 110VAC 220VAC
    Technical Data
    Model
    4V310-08
    4V320-08
    4V330C-08
    4V330E-08
    4V330P-08
    4V310-10
    4V320-10
    4V330C-10
    4V330E-10
    4V330P-10
    Fluid
    Air (to be filtered by 40 μm filter element)
    Acting
    internal pilot or external pilot
    Port Size
    In=Out=Exhaust=1/4''
    In=Out=3/8'', Exhaust=1/4''
    Orifice Size
    4V310-10, 4V320-10: 28.0mm² (Cv=1.65)
    4V330C-10: 21.3mm² (Cv=1.25)
    Vlave Type
    5 way 2 position
    5 way 3 postion
    5 way 2 position
    5 way 3 position
    Operating Pressure
    0.15 to 0.8 MPa (21 to 114 psi)
    Proof Pressure
    1.2 MPa (175 psi)
    Temperature
    -20 to +70ºC
    Body Material
    Aluminum Alloy
    Max Frequency
    5 cycle/sec
    3 cycle/sec
    5 cycle/sec
    3 cycle/sec
    Voltage
    12VDC, 24VDC, 24VAC, 110VAC, 220VAC
    Quality 4V330C-10 5 Way 3 Position Solenoid Valve Directional Control 5 3 Way Pneumatic Valve for sale
