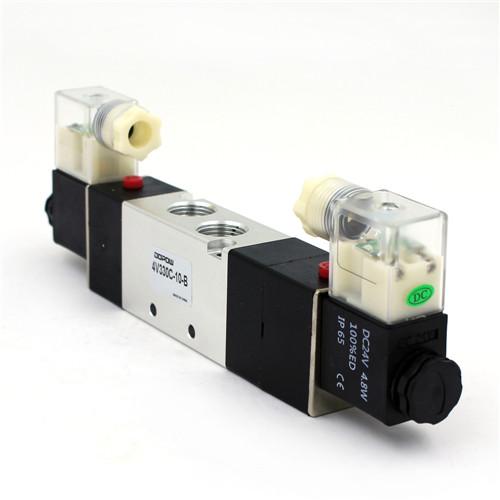

    4V330C-10 3/8'' Double Solenoid Directional Control Valve / 5 Way 3 Position Pneumatic Valve

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : 4V310-10B
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    4V330C-10 3/8'' Double Solenoid Directional Control Valve / 5 Way 3 Position Pneumatic Valve

    4V330C-10 5/3 Way 5 Way 3 Position Pneumatic Directional Control Air Solenoid Valve


    Pneumatic solenoid valves are used to direct or stop the flow of compressed air to their appliances. They can be used for example to actuate a cylinder, a larger industrial valve or air tools. Directional control valves are generally classified by two numbers, the first digit indicates the number of ports, the second digit the number of states. The most common types are 3/2-way, 5/2-way and 5/3-way. The valves can be single or double acting (one or two solenoids). By changing the solenoid coil, different operating voltages can be achieved. Several models are prepared for manifold mouning, please note the platform size when selecting a valve and manifold. Optionally, the valve body has a Namur configuration to directly mount the valve onto the actuator.


    Data of 4V300 Series Pneumatic Solenoid Valves:

    Model
    4V310-08
    4V320-08
    4V330C-08
    4V330E-08
    4V330P-08
    4V310-10
    4V320-10
    4V330C-10
    4V330E-10
    4V330P-10
    Fluid
    Air(to be filtered by 40 μ m filter element)
    Acting
    Internal pilot or external pilot
    Port Size
    In=Out=Exhaust=1/4''
    In=Out=3/8'' Exhaust=1/4''
    Orifice Size
    25.00 mm2(Cv=1.40)
    18.00 mm2(Cv=1.00)
    30.00 mm2(Cv=1.68)
    18.00 mm2(Cv=1.00)
    Valve Type
    5 port 2 position
    5 port 3 position
    5 port 2 position
    5 port 3 position
    Operating Pressure
    0.15~0.8MPa(21~114psi)
    Proof Pressure
    1.5MPa(215psi)
    Temperature ℃
    -20~70
    Material of Body
    Aluminum alloy
    Max. frequency
    4 cycle/sec
    4 cycle/sec
    4 cycle/sec
    4 cycle/sec

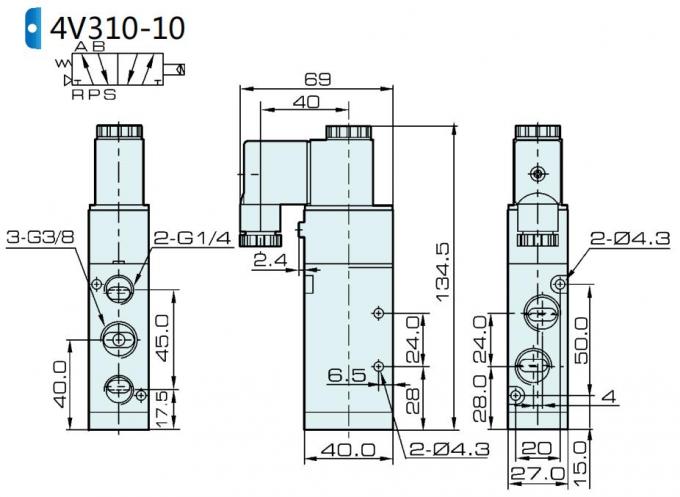

    Dimension of 4V310-10 Pneumatic Solenoid Valve:

    4V310-10B Airtac Type Air Pneumatic Solenoid Valve 5 Way 24VDC 0
