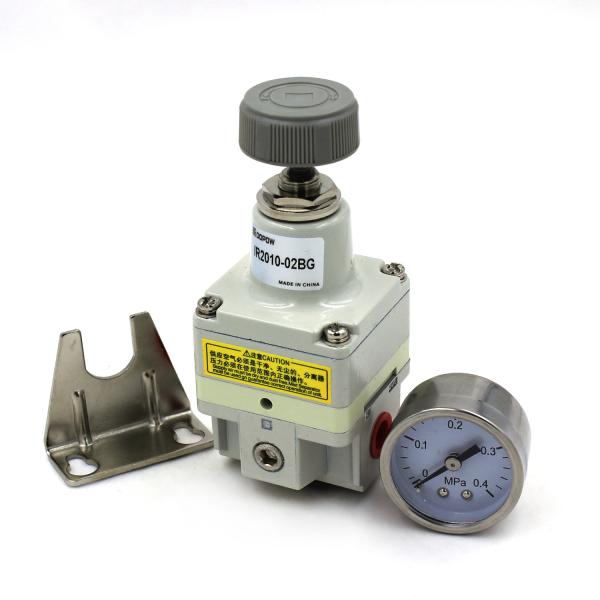

    IR Series Compressed Air Pressure Reducing Valve Precision Regulator Machine Parts.

    Ask Lasest Price
    Brand Name : DOPOW
    Model Number : IR Series
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100000Pcs/MO
    Delivery Time : 5 working days after receiving the customers' payment
    • Product Details
    • Company Profile

    IR Series Compressed Air Pressure Reducing Valve Precision Regulator Machine Parts.

    IR series various precision pressure reducing valve air pressure regulator precision regulator machine parts.


    Model

    Port size


    Max. rated flow

    Pressure adjustable rangeOperating temperature Range

    Sensitivity

    Note
    IR1000-01-BGPT1/8250 L/min0.005〜0.2Mpa■5〜55°C0.2%Max.operating pressure 1.0Mpa
    IR1010-01-BGPT1/8300 L/min0.01 〜0.4Mpa■5 〜55°C0.2%
    IR1020-01-BGPT1/8450 L/min0.01 〜0.8Mpa-5 〜55°C0.2%
    IR2000-02-BGPT1/4700 L/min0.005~0.2Mpa■5〜55°C0.2%
    IR2010-02-BGPT1/4950 L/min0.01 〜0.4Mpa■5〜55°C0.2%
    IR2020-02-BGPT1/41250 L/min0.01 〜0.8Mpa-5 〜55°C0.2%
    IR3000-03-BGPT3/83500 L/min0.005〜0.2Mpa-5 〜55°C0.2%
    IR3010-03-BGPT3/84500 L/min0.01 〜0.4Mpa■5〜55°C0.2%
    IR3020-03-BGPT3/86000 L/min0.01 〜0.8Mpa■5 〜55°C0.2%

    The Precision Regulator IR Series boasts a high flow rate of approximately 2 times the previous series (at maximum).
    [Features]
    · Air consumption reduced by up to 90% (approx.)
    · Lightweight type with approximately 27% weight reduction.
    · Sensitivity: 0.2% (full span).
    · Repeatability: ±0.5% (full span).
